Description:

This Roof Panel/Wall Panel Roll Forming Machine can produce any kinds of thickness of corrugated sheets, trapezoidal sheets. Normal thickness is from 0.3-0.8mm. The Corrugated Steel Silo Roll Forming Machine can work with Max. thickness 4.0-5.0mm, its product is used as corrugated steel silo. In South Africa, the Trapezoidal Panel Roll Forming Machine also is known as IBR Roll Forming Machine.

There are different kinds of machine structures, such as Torri stands, Thick wall stands and cast iron stands.

Normal speed is 10-15m/min. Max. Working speed can reach at 25m/min.

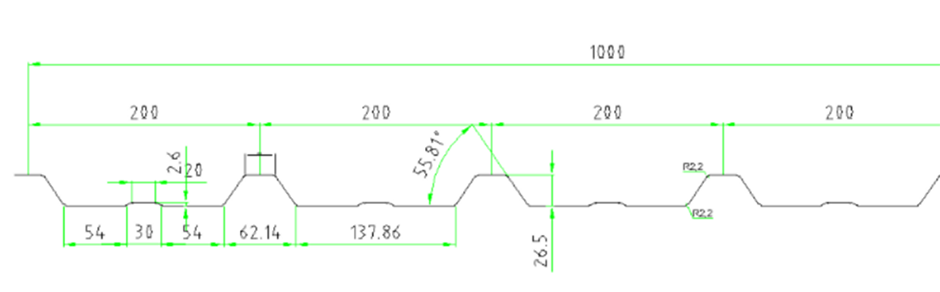

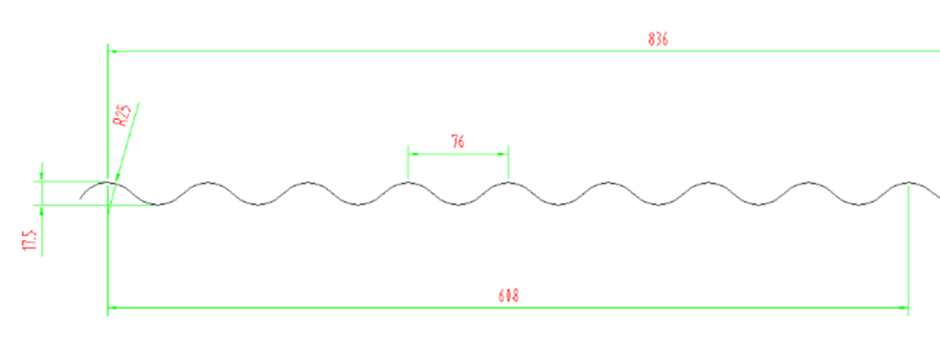

Profile:

Technical specification:

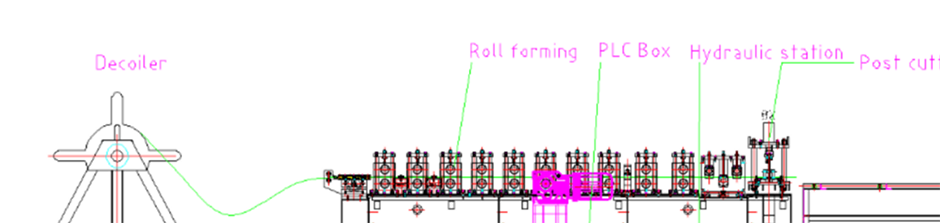

Roof panel/Wall panel roll forming machine
No.	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):0.2-5
		Yield strength: 250 – 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	10-30	Or according to your requirement
3	Forming station	18	According to your profile
4	Decoiler	Manual decoiler	Hydraulic decoiler or double head decoiler
5	Main machine motor	Sino-German Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers’ materail	Steel #45	GCr15
10	Station structure	Wall panel station	Forged Iron station Or torri stand structure
11	Punching system	No	Hydraulic punching station or Punching press
12	Cutting system	Post-cutting	Pre-cutting
13	Power supply requirement	380V 60Hz	Or according to your requirement
14	Machine color	Industrial blue	Or according to your requirement
