Product Detail

Description:

Gutter Roll Forming Machine normally work with 0.4-0.6mm thickness raw material to make gutters and drains. Normal working speed is aroun 10-20m/min. We adopt torri stand structure, it’s more beautiful and more table when the machine working.

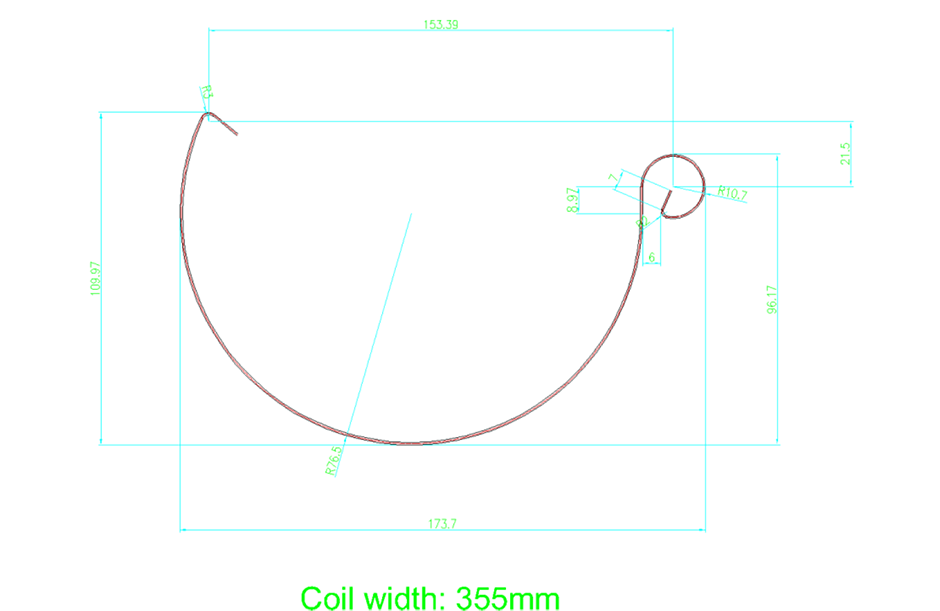

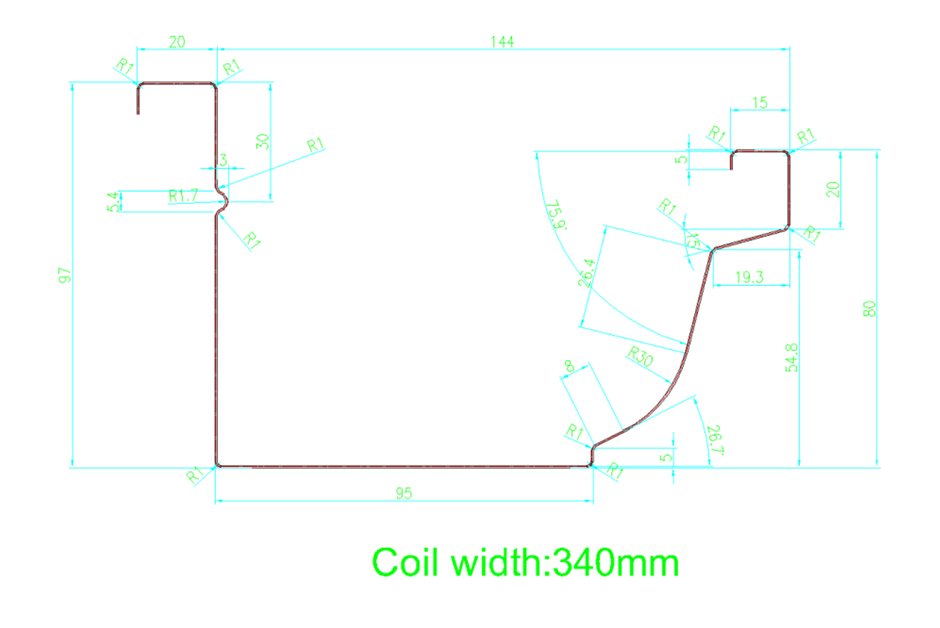

Profile:

Technical specification:

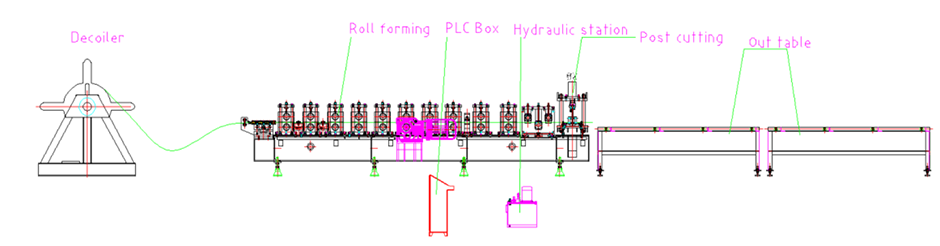

Gutter roll forming machine
No.	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):0.4-0.6
		Yield strength: 250 – 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	10-20	Or according to your requirement
3	Forming station	19	According to your profile
4	Decoiler	Manual decoiler	Hydraulic decoiler or double head decoiler
5	Main machine motor	Sino-German Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers’ materail	Steel #45	GCr15
10	Station structure	Torri stand structure	Forged Iron station Or Wall panel structure
11	Punching system	No	Hydraulic punching station or Punching press
12	Cutting system	Post-cutting	Pre-cutting
13	Power supply requirement	380V 60Hz	Or according to your requirement
14	Machine color	Industrial blue	Or according to your requirement
